EJD 120 222
Electric Pedestrian Stacker
EJD 120 222 Electric Pedestrian Stacker
2000, 2200 kg
Model Overview
|
型號 Model |
額定荷載 Load capacity |
提升高度 Lift height |
行駛速度 Travel speed |
總長度 Overall length |
電瓶電壓 Battery voltage |
|---|---|---|---|---|---|
| EJD 120 | 2,000 kg | 1,660 mm | 6 km/h | 1,847 mm | 24 V |
| EJD 222 | 2,200 kg | 2,905 mm | 6 km/h | 2,046 mm | 24 V |
- Multifunctional double-decker truck.
- Flexible storage and retrieval up to a height of 2,905 mm.
- Greatest lift height variance in three mast types.
- Available with lithium-ion technology.
- Versatile assistance systems for maximum safety.

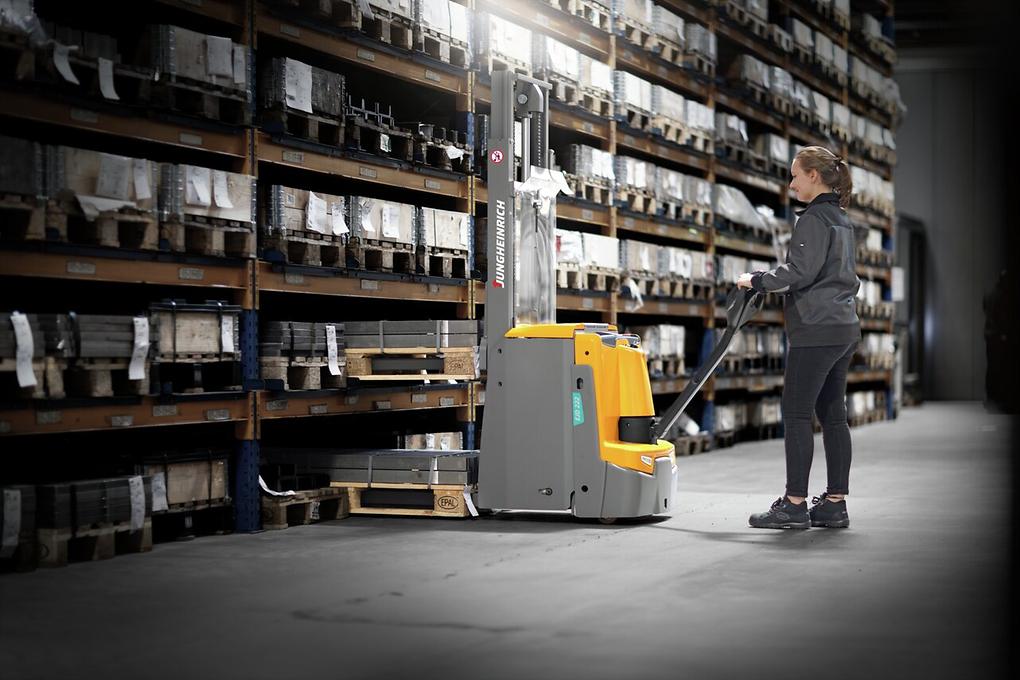

The versatile and compact EJD electric stacker truck is the perfect choice for the double-decker transport of goods on ramps and uneven floors, as well as stacking and retrieval at heights of up to 2,905 mm. This efficient truck combines stable handling with maximum manoeuvrability, even in confined warehouse conditions. By picking up two pallets at a time, the EJD works twice as fast as conventional trucks. Maximum occupational safety is ensured by intelligent assistance systems, a long safety tiller with 4-level foot protection, reflectors and optimum view of the fork tip. The modern 3-phase AC motor convinces with impressive endurance, high performance and optimum energy efficiency. A flexible choice of three travel programs and standard, sensitive proportional hydraulics for controlled lifting and lowering make comfortable working possible.
Related Products
Electric Stackers
Pedestrian Stackers
Ride-on/Pedestrian Stackers
Features
- A modern 3-phase AC drive motor for greater performance with reduced operating costs.
- ECO drive mode for lower energy consumption at constant travel speed.
- Roll-back protection on gradients.
- Maintenance-free drive motor without carbon brushes.
- Long service life with high battery capacities up to 375 Ah.
- S battery compartment with 150 Ah (EJD 120), M with 250 Ah or L with 375 Ah (EJD 222).
- Optional built-in charger for wet cell batteries and maintenance-free batteries for easy charging at any 230-V mains socket.
- Time-saving and ergonomic battery replacement with lateral battery exchange in compartment M and L.
- High availability thanks to extremely short charging times.
- No battery exchange required.
- Cost savings due to longer service life and zero maintenance as compared to lead-acid batteries.
- No charging rooms and ventilation required as there is no build-up of gas.
- Optional built-in charger for lithium-ion batteries allows for easy charging at any 230-V mains socket.
- Enclosed frame contours.
- Up to 7-mm steel frame for high throughput applications.
- Pallet stop on the frame for quick and precise positioning of 2 stacked pallets.
- Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
- Precise and gentle lifting and lowering of the load by speed-controlled hydraulic motor.
- Lateral touch mode for lifting and lowering the forks when order picking.
- Flexible selection of three travel programs.
- Optional integrated spotlights for better visibility in poorly lit areas.
- 4-stage safety tiller for active foot protection.
- Optional 2-inch additional display for assistance systems incl. good visibility when stacking.
- Battery charge status, number of operating hours and event messages.
- Optional activation of the truck by EasyAccess via soft key, PIN code or transponder card.
- Double-decker transport of two pallets simultaneously.
- An additional lifting mechanism raises the support arms independently of the forks.
- A wide range of masts in various designs offer individualisation (EF = single mast, ZT = duplex telescopic mast, DT = triplex telescopic mast).
- Driving the truck at the ergonomic speed of 5.6 km/h allows for comfortable and safe manoeuvring.
- Travel program 3 allows for individual adjustment to a maximum speed of 6 km/h.
- Spotlight for optimal illumination.
- Cold store version.
- Load guard in two heights.
- Option mount on the battery lid.
- Robust, universally applicable option bracket.
- Spotlight for HGV illumination.
- Shrink wrap holder.
- A4 writing pad.
- Magnetic storage compartment.
